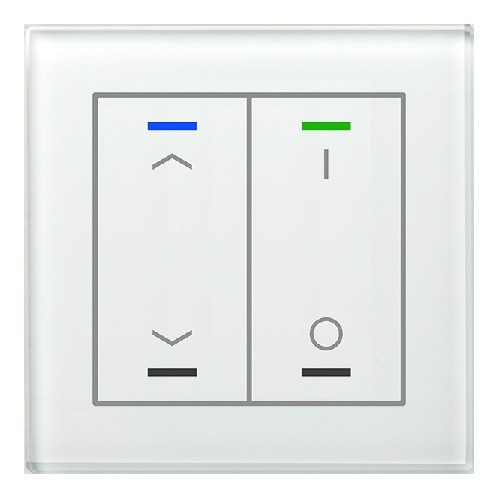

Glass Push Button II Lite, 2-fold, White, Version UP/DOWN and I/O symbol, with temperature sensor

BE Glass Push Buttons II Lite
Description: The MDT Glass Push Button II Lite releases KNX telegrams after touching the sensor areas, 1 or 2 Button operation can be programmed. Each sensor button has two RGBW status LEDs. In addition to switching, dimming, shutters or sending values,
numerous functions are available. The Glass Push Button II Lite has 4 integrated logical modules and an slap function with additional switch channel.

• Production in Germany, certified according to ISO 9001
• Comprehensive application
• Push Buttons can be programmed for 1 or 2 button operation
• 1 and 2 button operation for switching, dimming, shutters, values
• Changing of values/scenes with up to 4 values
• Operation with short/long button push and 2 objects
• Innovative group control with long/extra long button press
• New multi touch function, sends up to 4 values/DPTs
  on the same or different objects
• Slap function with additional switch channel
• Two RGBW Status LED per button pair
• LED brightness controllable via day/night or brightness object
• 4 logic blocks
• Installation in an installation box
• Dimensions (W xH): 92mm x 92mm

• Integrated bus coupling unit
