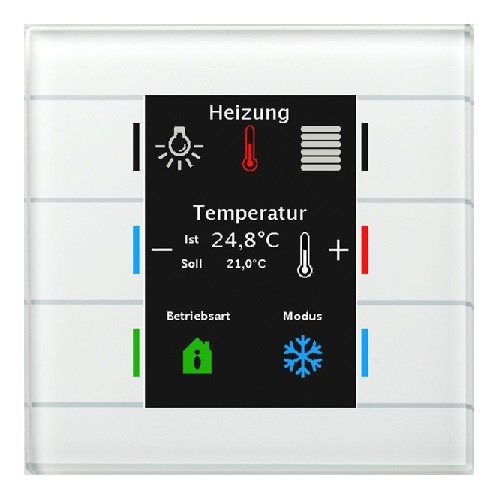

Glass Push Button II Smart, 4/6/8/12-fold, White, Colored display and RGB status indicator

BE Glass Push Button II Smart
Description: The MDT Glass Push Button II Smart releases KNX telegrams after touching the sensor areas on top, 1 or 2 Button operation can be adjusted. The device provides extensive functions like switching of lighting, operation of blinds and shutters, contact type and block communication objects for each channel. The Glass Push Button has 4 integrated logical modules.
The Glass Push Button II Smart has a large, colored active display to indicate funtion and status. For each button are symbols and plain text adjustable. The 2 buttons on top are used to enter the function levels directly, the other 4 buttons can be reserved with 2 or 3 function levels (8/12-fold). The Glass Push Button II Smart can be also used as 6-fold push button without function levels.
The Glass Push Button II Smart offers additional funtions to set temperature and operation mode. In combination with the MDT Heating Actuator an efficient room temperature regulation can be configured and vizualized. Furthermore user defined 1Bit messages and 14Byte text telegrams can be indicated.

• Production in Germany, certified according to ISO 9001
• The buttons can be adjusted for 1 or 2 button operation
• 4 buttons can be reserved with 2 or 3 function levels (8/12-fold)
• 2 buttons to enter the function levels directly
• Large, colored active display to indicate function and status
• Symbols and plain text adjustable for each button/function
• 1 or 2 button operation for switching, dimming, shutters, values
• Short/long button push with 2 objects
• RGB status for each button separate controlable from each level
• Indication of inside/outside temperature and time
• Automatic display brightness via light sensor and day/night object
• Slap function with additional switch channel
• Recommended mounting height: 1,05 - 1,25m
• Installation in socket, Dimensions (W x H): 92mm x 92mm
• No additional power supply required
• Integrated bus coupling unit
